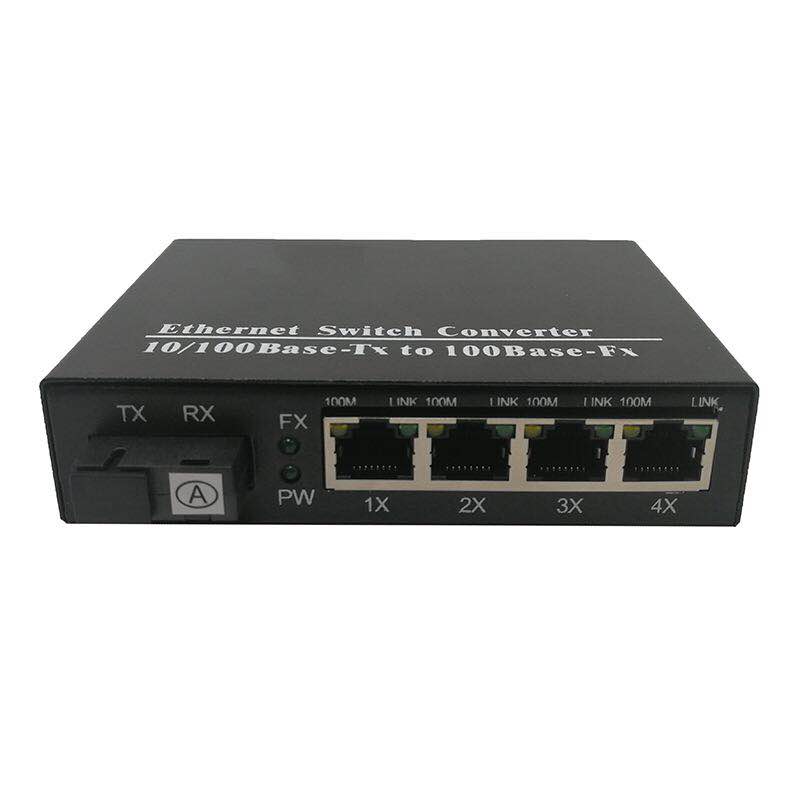

10/100 Mbps Single/Dual Fiber Media Converter
10/100 Mbps Single/Dual Fiber Media Converter
10/100Mbps Media Converter is the network communication device that realizing smooth network upgrade without any additional cost. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to 10Base-T,100Base-TX,100Base-FX and IEEE 802.3x standards, and can connect with Person Computer, SERVER, HUB and SWITCH. It can be set into full/half duplex auto-negotiation by manual, and it has two transmission mode: SM and MM, and its interface has many selectable optic fiber connectors and RJ-45 connector.
FEATURES
- Complies with IEEE 802.3 10 Base-T standard.
- Complies with IEEE 802.3u 10/100 Base-TX/FX standard
- Complies with IEEE 802.3X standard
- 10/100/ Mbps port with full/half duplex auto-negotiation
- Back pressure flow control for full duplex
- Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
- Back pressure flow control for full/half duplex IEEE802.3X
- Automatic identification of MDI/MDI-X cross-line
- High-performance 155Mbps memory bandwidth
Complies with FCC, 15 CLASS A ，RoHS and CE MARK
TECHINCAL SPECIFICATIONS:
| Standard Protocol | IEEE802.3 10 Base-T standard | |||
| IEEE802.3u 10/100Base-TX/FX standard | ||||
| IEEE 802.3d standard. | ||||
| IEEE 802.3Q standard. | ||||
| Band Width | RJ 45 Port: 10/100Mbps | Optical Port: 155Mbps | ||
| Operation Mode | Full /Half duplex mode | |||
| Connectors | UTP: RJ-45 | Fiber connector: SC/ST/FC | ||
| Operation Mode | Full /Half duplex mode | |||
| LED Indicators | POWER, FPL,10/100, FRX, TRX , FDX. | |||
| Power Supply | External | DC-48V,DC24V,DC12V,DC5V | ||
| Internal | AC110-250V/50Hz | |||
| DC -32~-72V | ||||
| Power Consumption | ≤5W | |||
| Environmental Parameters | Work Temperature | 0℃~50℃ (32 °F ~ 122 °F ) | ||
| Storage Temperature | -40℃~70℃ (-40 °F ~ 158 °F ) | |||
| Humidity | 5%~90% non-condensing | |||
| TP Cable | Cat5 UTP cable (the max distance up to 100m) | |||
| Fiber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | |||
| 50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||||
| MTBF (Hours) | >50000 | |||
| Dimensions(mm) | External power supply | 94mm*70mm*25mm (3.7 *2.8*0.98 inch) | ||
| Internal power supply | 140mm*110mm*30mm (5.5 *4.3 *1.2 inch) | |||
| Socket Card | 157mm*128mm*31mm (6.2 *5.1 *1.2 inch) | |||
| Gross Weight | External power supply | 0.4 kg | ||
| Internal power supply | 0.8kg | |||
| Socket Card | 1.0kg | |||
| Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark | |||
